Sprintech 90

Sheet Cheque Personalisation System

The Inotech MICR PRODUCTS IMP continuous stationary MICR encoder is cost effectively designed to print high quality MICR codelines for low volume applications using heavy duty proven impact technology, giving low reject rate on cleared documents. The IMP can linked in tandem to a variety of impact and non impact printers to provide a full personalization system producing up to 7,500 fully personalized cheques per hour.

The IMP is manufactured to high quality standard to give high reliability to meet both production and office environments with simple user friendly operation.

The IMP can be driven from existing Inotech software or from new windows based PReS software.

Download our Sprintech 90 Brochure

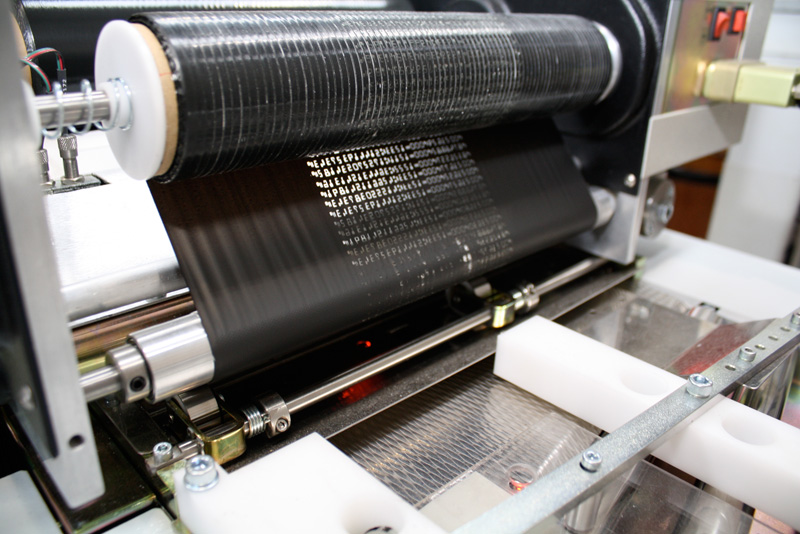

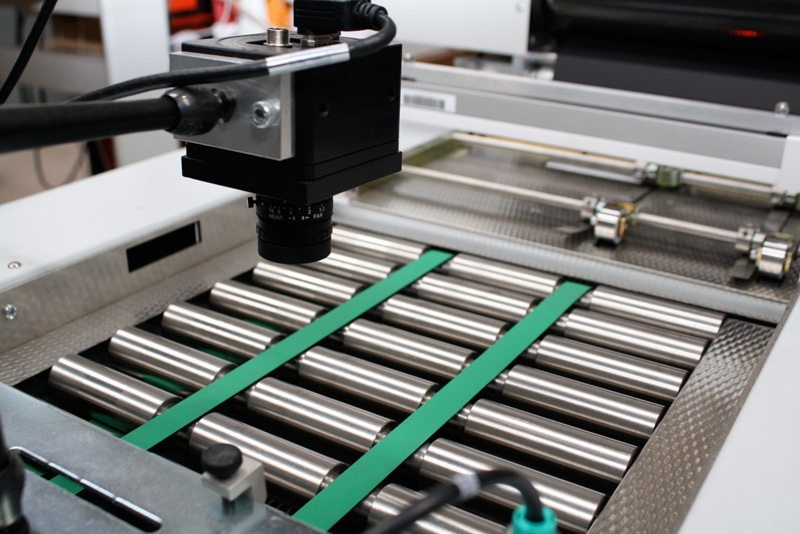

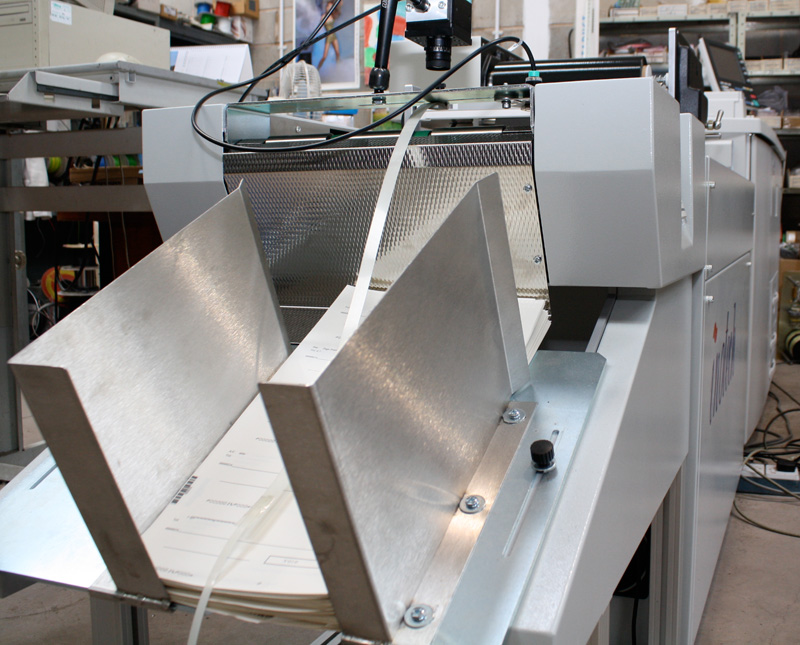

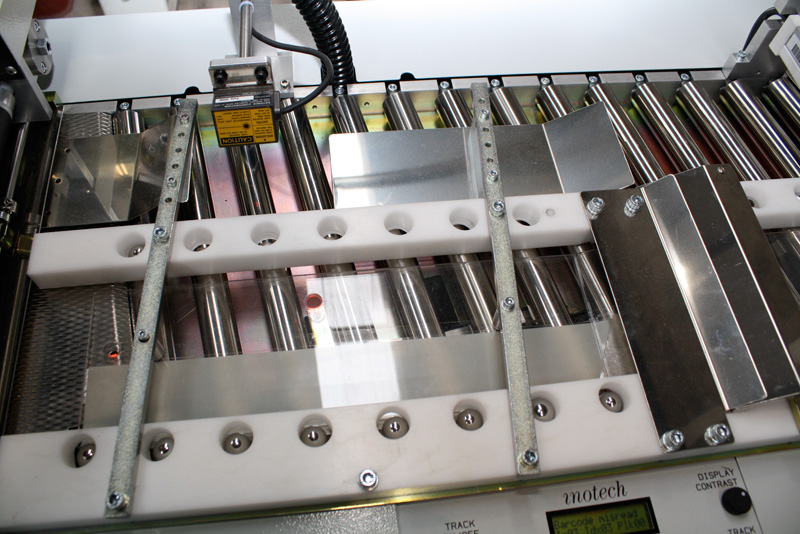

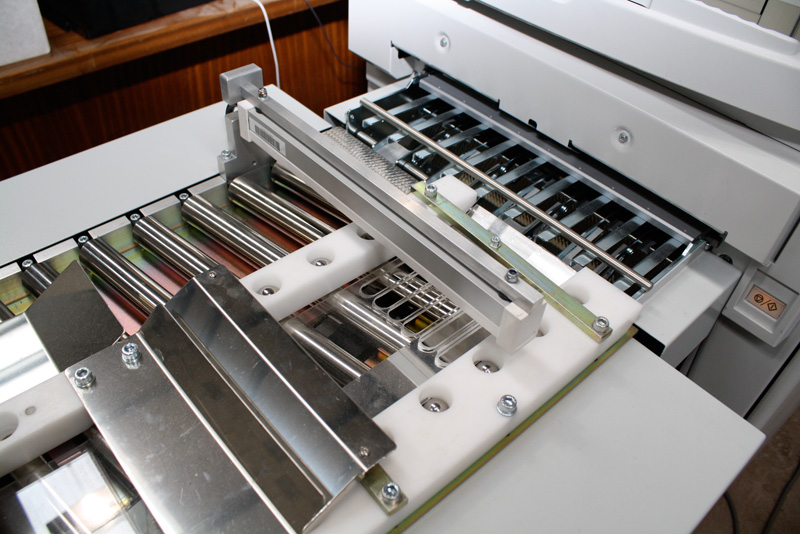

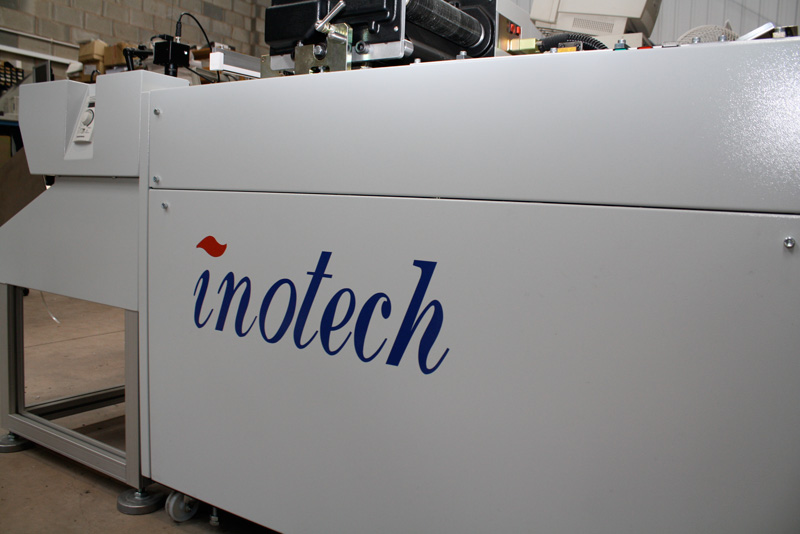

Sprintech 90 images

Sprintech 90 Specifications

Printing Process Laser diode array + Electro photographic printing
Resolution 600×600 DPI
Paper Input Capacities
Paper Sizes Min: 100x140mm
Max: 330x458mm
MICR Print Unit 80 Columns at 8 c.p.i with incremental ribbon system
MICR Print Width 10 Inches
Warm Up Time Less than 360 seconds
Dimensions 870 x 860 x 3456 mm
Weight 475kg
Power Requirement 220Vac 50/60Hz 4.5kW, single phase.
Environment Temperature 60 to 80 deg F
Humidity 25% to 70%

All specifications are preliminary and subject to change.

*Use of multipart forms is subject to qualification

A dedicated clean line mains supply is required for the above system.

An uninterpretable power supply is required for installations where the continuity of the mains supply cannot be guaranteed.
